3 Getting Started

This section provides users with detailed information on program setup and configuration of the master program parameters. For more information on the technical requirements for running the QA Package, please refer to section 1.2: Technical Requirements.

3.1 Program Set-up

3.1.1 Download the QA Package from Sentinel git

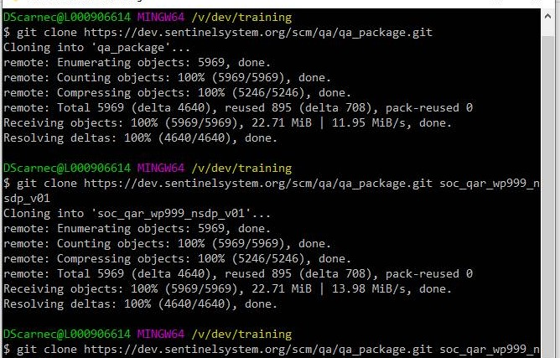

1. Using git, clone the QA Package from the Sentinel git repo, into a folder using the package’s RequestID: git clone https://dev.sentinelsystem.org/scm/qa/qa_package.git soc_qar_wp999_nsdp_v01.

3.1.2 Configure the Master Program

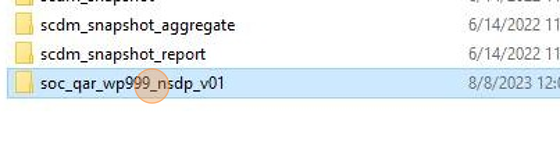

2. Open the QA Package folder.

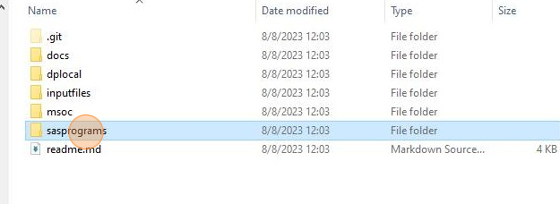

3. Open sasprograms.

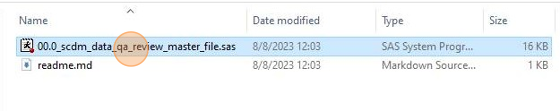

4. Open the file 00.0_scdm_data_qa_review_master_file.sas in SAS or a text editor.

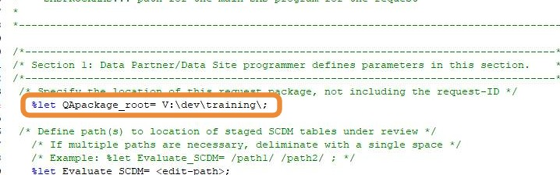

5. Find the parameter QAPackage_root and populate it with the path to the directory containing the QA Package. This should be the path from which the program will be run.

6. Populate the parameter Evaluate_ETL with the path or paths to the SCDM tables to be evaluated by the QA Program Package.

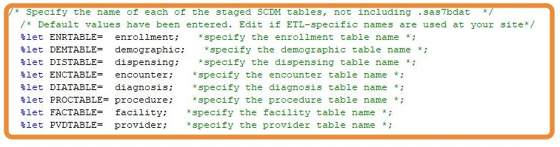

7. Review the SCDM table parameters, checking to make sure the defaults match the filenames of the datasets containing each SCDM table to be evaluated. If they do not, update to match the dataset filenames.

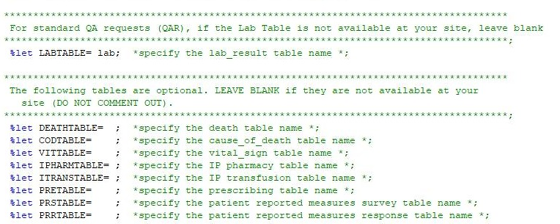

8. Populate table parameters for any optional SCDM tables being evaluated.

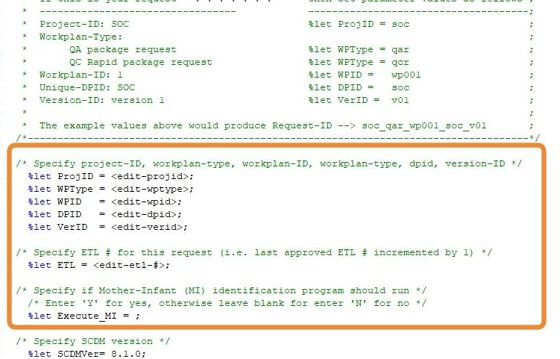

9. Locate the request parameters.

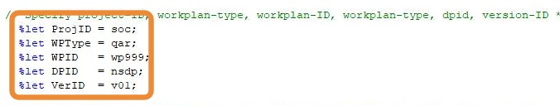

10. Populate ProjID, WPType, WPID, DPID, and VerID parameters. These parameters should match the RequestID of the program package.

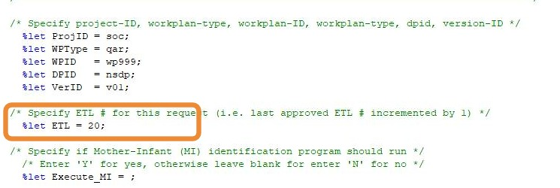

11. Populate the parameter ETL with the number of this data refresh.

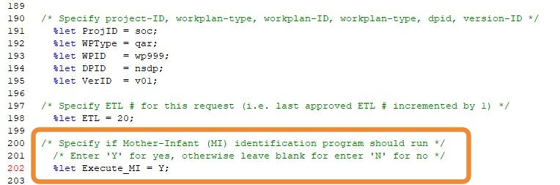

12. If the Mother-Infant Linkage table is to be populated, set Execute_MI to Y. Otherwise, set to N or leave blank.

13. Save 00.0_scdm_data_qa_review_master_file.sas and close.

3.1.3 Configure QA Package Control Flow

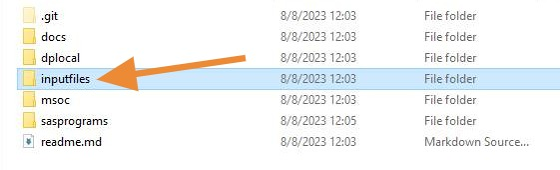

14. Navigate back to the root directory of the QA Package. Then open the folder inputfiles.

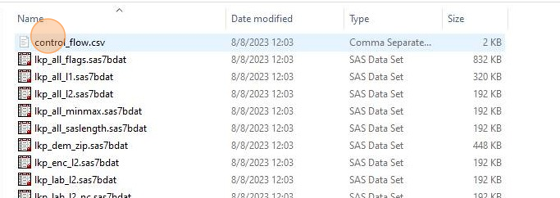

15. Open control_flow.csv in a text editor.

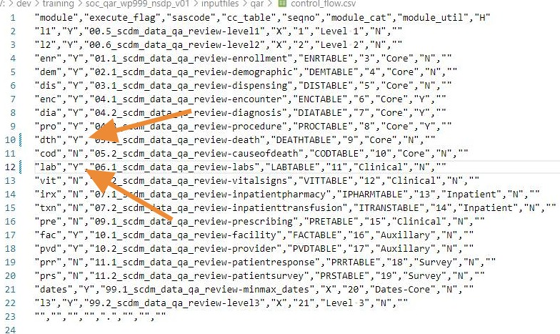

16. For any optional SCDM tables being evaluated, change the value of execute_flag to Y.

17. Save control_flow.csv and close.

3.1.4 Running the QA Package

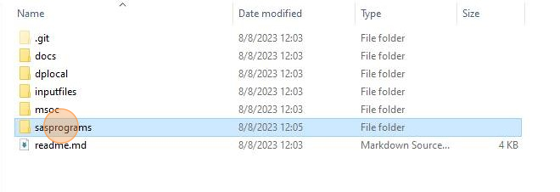

18. Navigate back to the QA Package root directory and open the folder sasprograms.

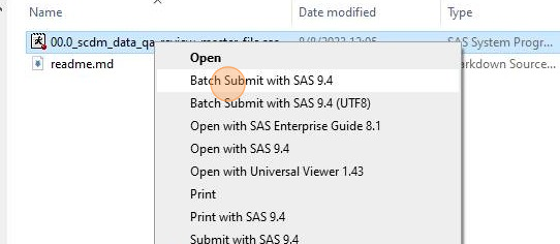

19. Using the method appropriate for the system the package is being run on, submit 00.0_scdm_data_qa_review_master_file.sas to the SAS system as a batch job.

3.2 Master Program Parameters

The master SAS program found in sasprograms/00.0_scdm_data_qa_review_master_file.sas contains several parameters that must be specified by the user. These include the directory containing the QA Package, project, work plan, Data Partner identifiers, and a version identifier. Table 3.1 contains detailed specifications for master program parameters.

Table 3.1: List and description of parameters to be populated for program set-up

Parameter	Field Name	Description	…4
Path name for QA Package folder	QAPACKAGE_ROOT	Location of the QA Package root directory.
		Format: Alphanumeric
		Example: /apps/socrequests/
Path name for staged SCDM tables	EVALUATE_SCDM	Location of staged SCDM tables under review.
		Note 1: If multiple paths are necessary, delimit with a single space
		Format: Alphanumeric
		Example: /sentinel/etl14/tables
Enrollment table name	ENRTABLE	Specifies the enrollment table name. Value should exclude the .sas7bdat extension part of the file name. Default values are provided.
		Example: enrollment
Demographic table name	DEMTABLE	Specifies the demographic table name. Value should exclude the .sas7bdat extension part of the file name. Default values are provided.
		Example: demographic
Dispensing Table name	DISTABLE	Specifies the dispensing table name. Value should exclude the .sas7bdat extension part of the file name. Default values are provided.
		Example: dispensing
Encounter Table name	ENCTABLE	Specifies the encounter table name. Value should exclude the .sas7bdat extension part of the file name. Default values are provided.
		Example: encounter
Diagnosis Table name	DIATABLE	Specifies the diagnosis table name. Value should exclude the .sas7bdat extension part of the file name. Default values are provided.
		Example: diagnosis
Procedure Table name	PROCTABLE	Specifies the procedure table name. Value should exclude the .sas7bdat extension part of the file name. Default values are provided.
		Example: procedure
Facility Table name	FACTABLE	Specifies the facility table name. Value should exclude the .sas7bdat extension part of the file name. Default values are provided.
		Example: facility
Provider Table name	PVDTABLE	Specifies the provider table name. Value should exclude the .sas7bdat extension part of the file name. Default values are provided.
		Example: provider
Lab Results Table name	LABTABLE	Specifies the laboratory results table name. Value should exclude the .sas7bdat extension part of the file name.
		Example: lab_results
Death Table name	DEATHTABLE	Specifies the death table name. Value should exclude the .sas7bdat extension part of the file name.
		Example: death
Cause of Death Table name	CODTABLE	Specifies the cause of death table name. Value should exclude the .sas7bdat extension part of the file name.
		Example: cause_of_death
Vital Signs Table name	VITTABLE	Specifies the vital signs table name. Value should exclude the .sas7bdat extension part of the file name.
		Example: vital_signs
Inpatient Pharmacy Table name	IPHARMTABLE	Specifies the inpatient pharmacy table name. Value should exclude the .sas7bdat extension part of the file name.
		Example: ip_rx
Inpatient Transfusion Table name	ITRANSTABLE	Specifies the inpatient transfusion table name. Value should exclude the .sas7bdat extension part of the file name.
		Example: ip_trx
Prescribing Table name	PRETABLE	Specifies the prescribing table name. Value should exclude the .sas7bdat extension part of the file name.
		Example: prescribing
Patient Reported Measures Survey Table name	PRSTABLE	Specifies the patient reported measures survey table name. Value should exclude the .sas7bdat extension part of the file name.
		Example: prs
Patient Reported Measures Response Table name	PRRTABLE	Specifies the patient reported measures response table name. Value should exclude the .sas7bdat extension part of the file name.
		Example: prr
Project Identifier	PROJID	Project identifier for internal SOC identification and tracking
		Format: Alphanumeric
		Example: soc
Work Plan Type	WPTYPE	Work plan type for internal SOC identification and tracking.
		Valid Values: qar: Used for package distributions aimed at Sentinel Distributed Database Data Partners qcr: Used for package distributions aimed at Rapid COVID Distributed Database Data Partners qad: Used for beta test packages
		Note 1: This value is used to conditionally select the appropriate inputfiles for the distributed database type.
		Format: Alphanumeric
		Example: qar
Workplan Identifier	WPID	Work plan identifier for internal SOC identification and tracking.
		Note 1: Should follow the format wp[###].
		Note 2: Should be used to uniquely identify packages distributed against given ETL
		Format: Alphanumeric
		Example: wp001
Data Partner Identifier	DPID	Data Partner identifier for internal SOC identification and tracking.
		Format: Alphanumeric
		Example: nsdp
Version Identifier	VERID	Version identifier for internal SOC identification and tracking. Should track each re-distribution of the package (if multiple distributions are required).
		Note 1: Should follow the format v[##].
		Format: Alphanumeric
		Example: v01
ETL Number	ETL	ETL Number for this request.
		Format: Numeric
		Example: 22
Mother-Infant Identification Program	EXECUTE_MI	Parameter indicating whether the Mother-Infant Identification Program should run.
		Valid Values: Y N
		Note 1: If left blank, parameter will default to N
		Format: Alphanumeric
		Example: Y
Use ZIP3	ZIP3	Specifies whether a three or five digit ZIP code value is available.
		Valid Values: Y N
		Example: Y
Sentinel Common Data Model Version	SCDMVER	Parameter indicating the version of the Sentinel Common Data Model in which the data the QA Package is to run against is formated.
		Format: Alphanumeric
		Example: 8.1.0
